LED Film Screen

Key Parameters

Pixel pitch (mm)	P4-8 | P6.5 | P10 | P20
Profile Dimension (mm) (w*h)	960*320/1000*500
Transparency Rate	65%~85%
Brightness(cd/m²)	≥3000~5000

Product Features



High Transparency

The Film LED Screen features an extremely simple structure and high transmittance, and does not affect daylighting of glass curtain walls. The transmittance reaches over 85%.

light & thin

The screen is lightweight and imposes no load on the glass. Thickness: approx. 4 mm; Weight: 3–6 kg/㎡.

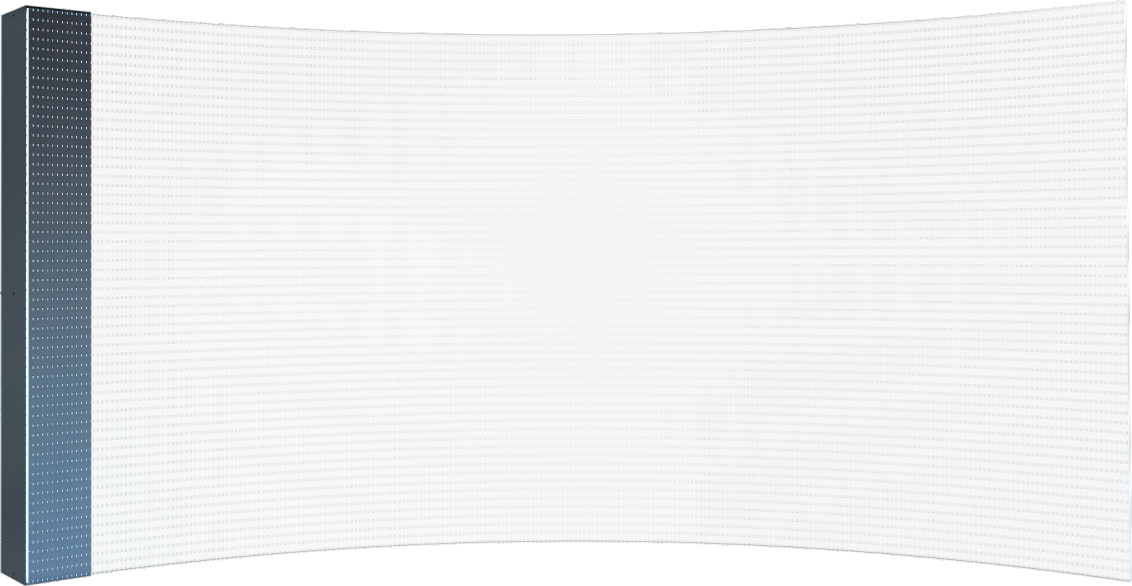

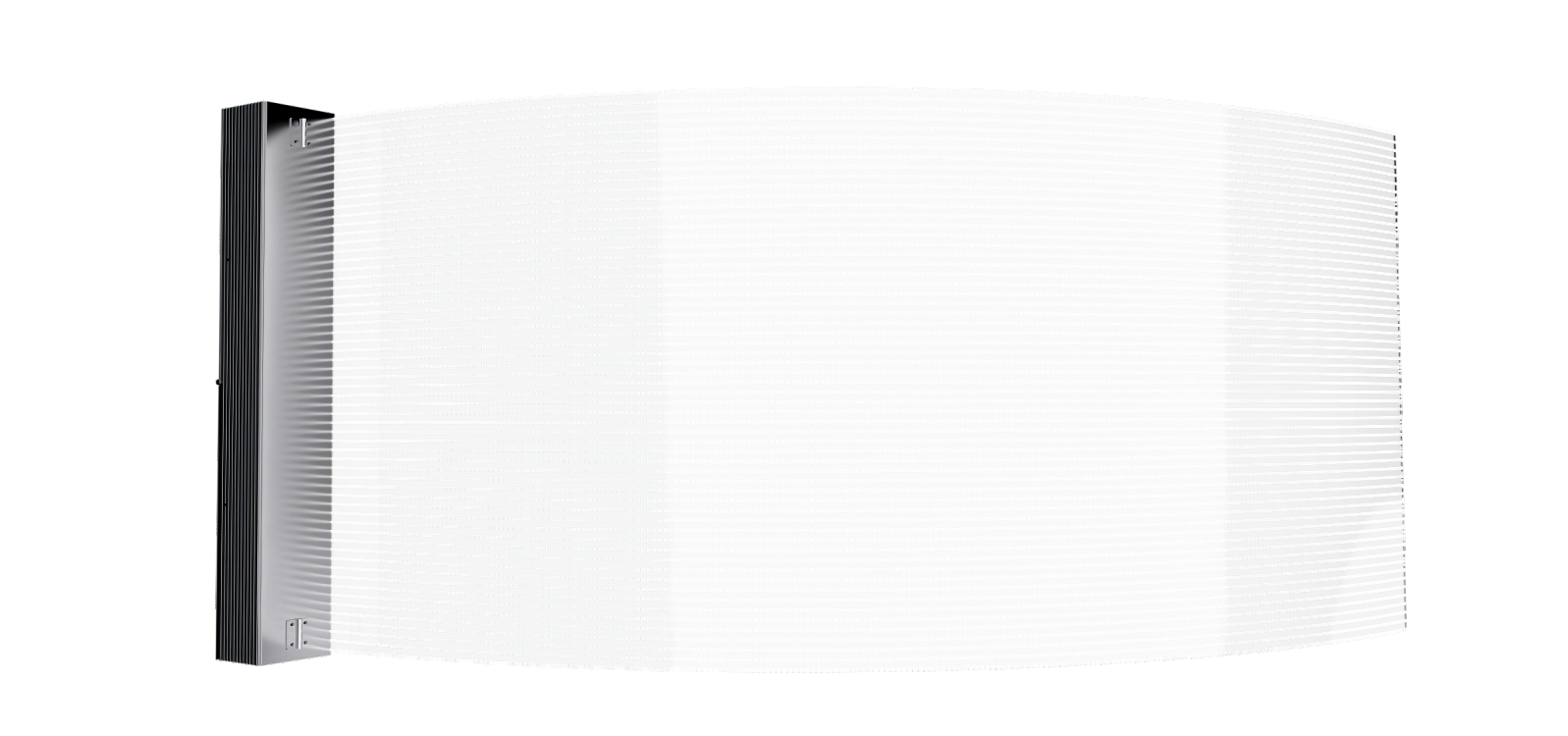

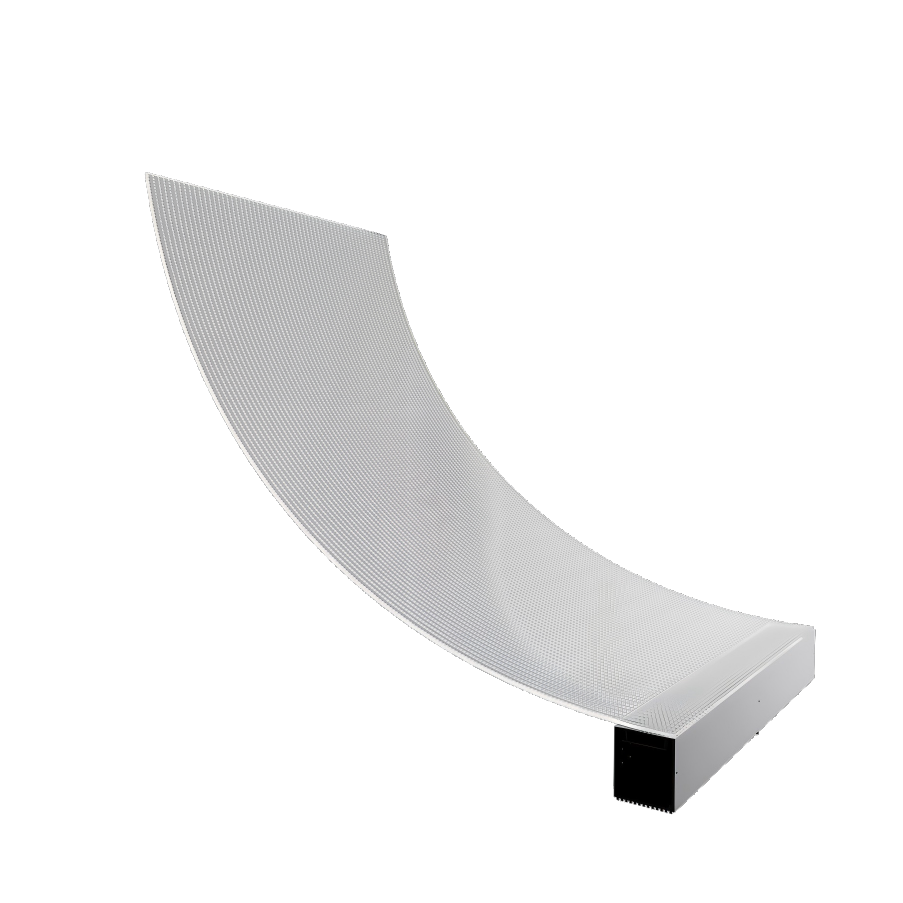

High Flexibility

The maximum single cabinet size can be 960 mm × 1500 mm, with brightness up to 4500 cd/m².The maximum length for a single piece of glass is 3 meters, with no power box in the middle. It is bendable and cuttable, free from size restrictions, so can be flexibly customized according to customer requirements with great toughness.

Wide Viewing Angle

The viewing angle reaches up to 150° horizontally and vertically. No viewing blind spots or color shift, delivering seamless and perfect images.

Safe & Aesthetic

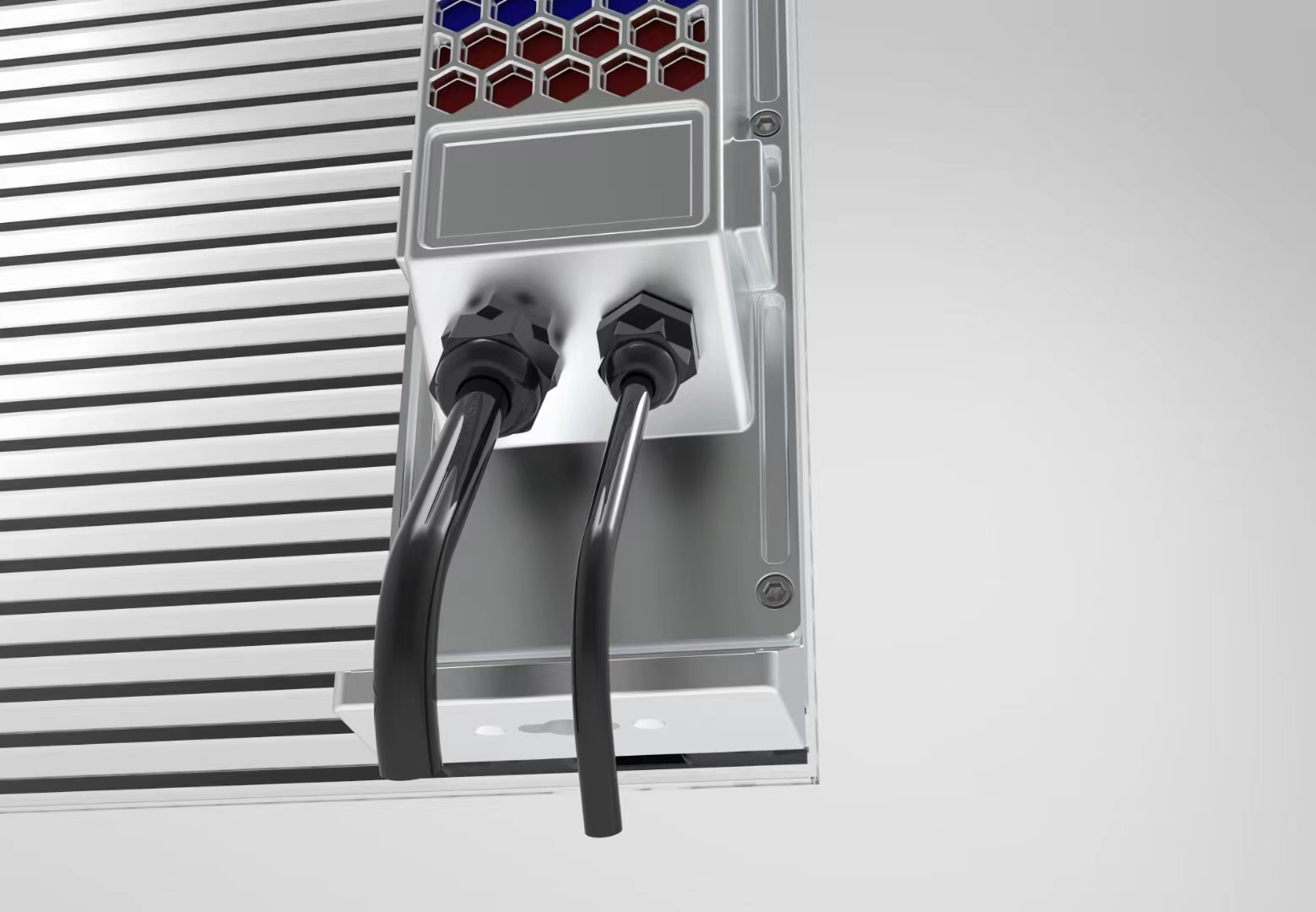

No exposed components on the screen surface, with hidden power supply for safe and reliable operation.

Fast installation

Easy installation without complicated mounting structures.

Cost Saving

Installation requires no extra steel frame structure and no modification to the exterior appearance of the attached building, effectively reducing transportation and installation costs.



Specifications



Product Model	P4-8	P6.5	P10	P20
Pixel Pitch (mm)	W4*H8	W6.5*H6.5	W10*H10	W20*H20
Pixel Density (dot/㎡)	31250	23668	10000	2500
LED Type	SMD2020(Integrated LED & Driver IC)
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Transmittance	60%	55%	85%	85%
PCB Material	TG150 Glass Fiber Laminate
Module Size (mm)	960(H)X320(W)mm	1000(H)*500(W)mm		960(H)X320(W)mm
Panel Weight	8KG/m²
Brightness (cd/m²)	5500	4500	3500	3000
Power Supply	Chenglian / Yuanchi
Power Supply Cooling Method	Self-cooling / Natural Cooling
Scan Mode	Static Scan (1/1 Scan)
Viewing Angle	H150° – V150°
Best View Distance	>6M
Gray Scale	16bit
Module Operating Voltage	AC110~240V, 50/60Hz
Peak Power Consumption	800W/m²
Average Power Consumption	240W/m²
LED Lifespan	100,000 Hours
Application Environment	-25℃~65℃,10% ~ 90%RH, Non-condensing
Installation Method	Adhesive Mounting, Hoisting, Fixed Mounting

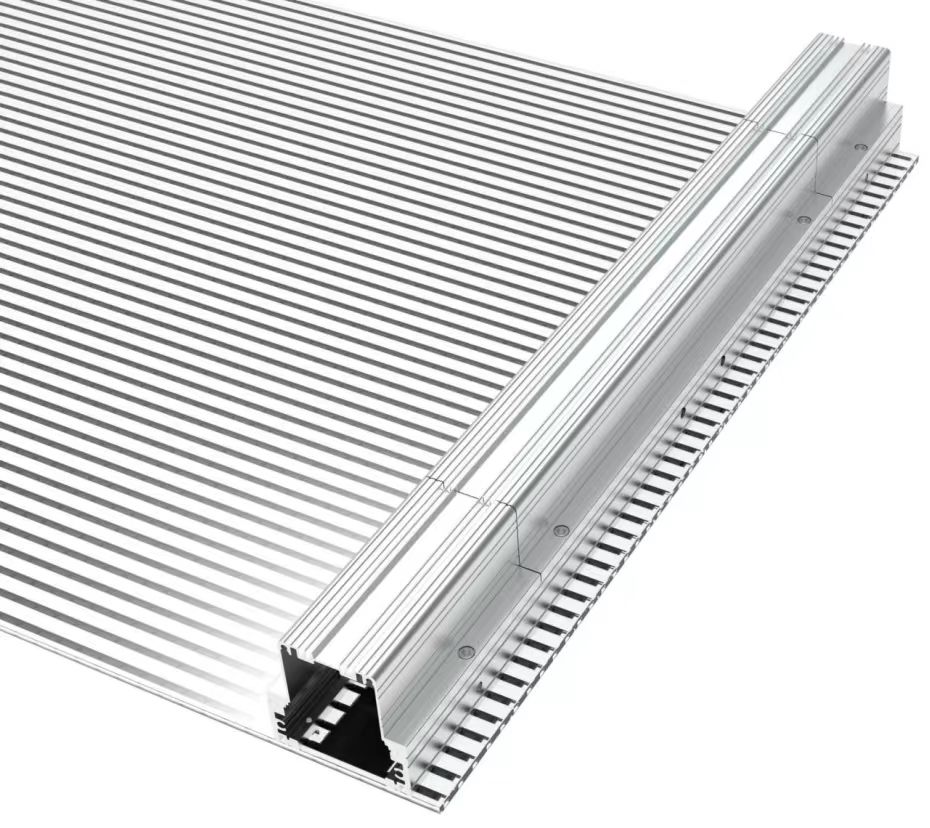

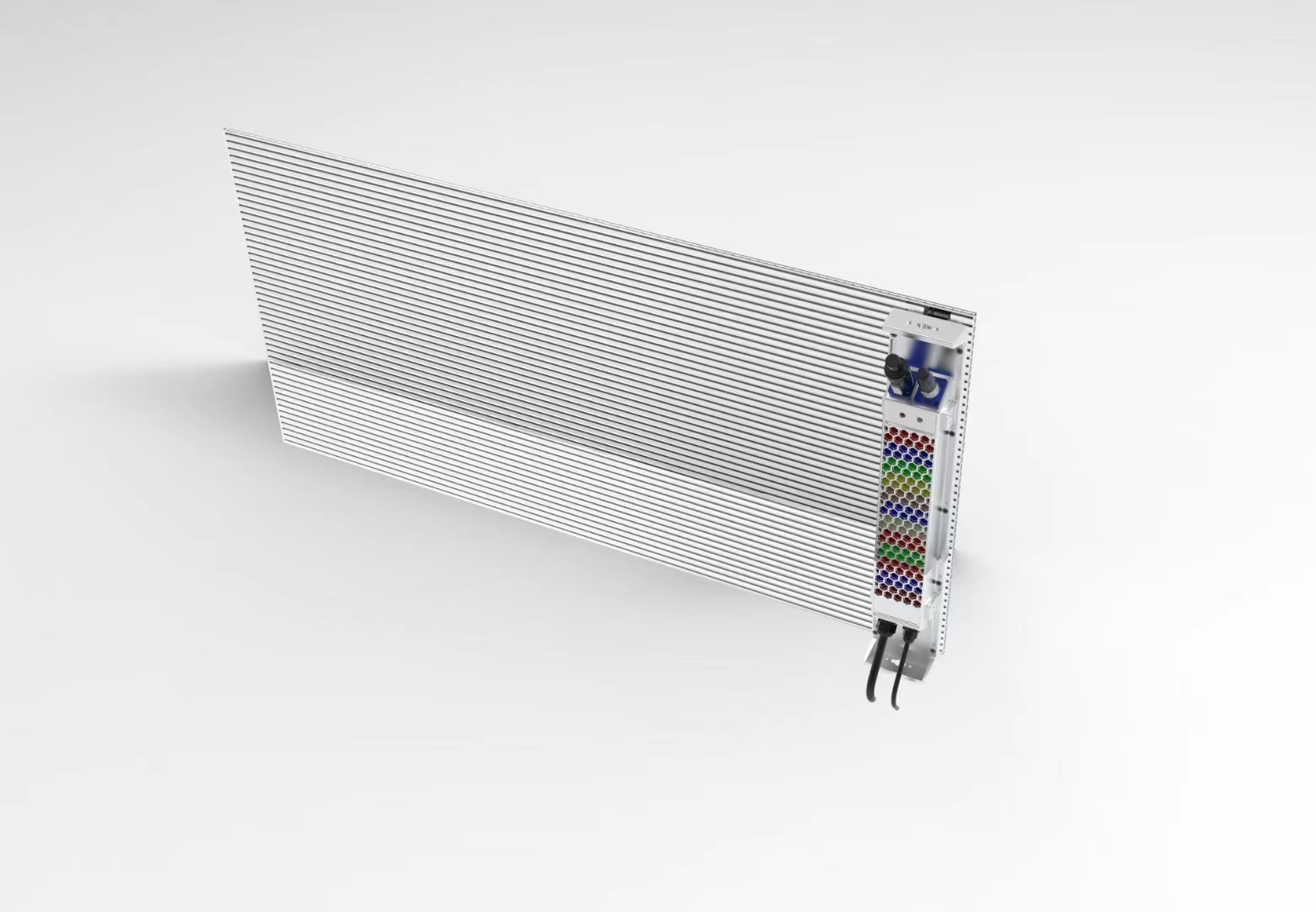

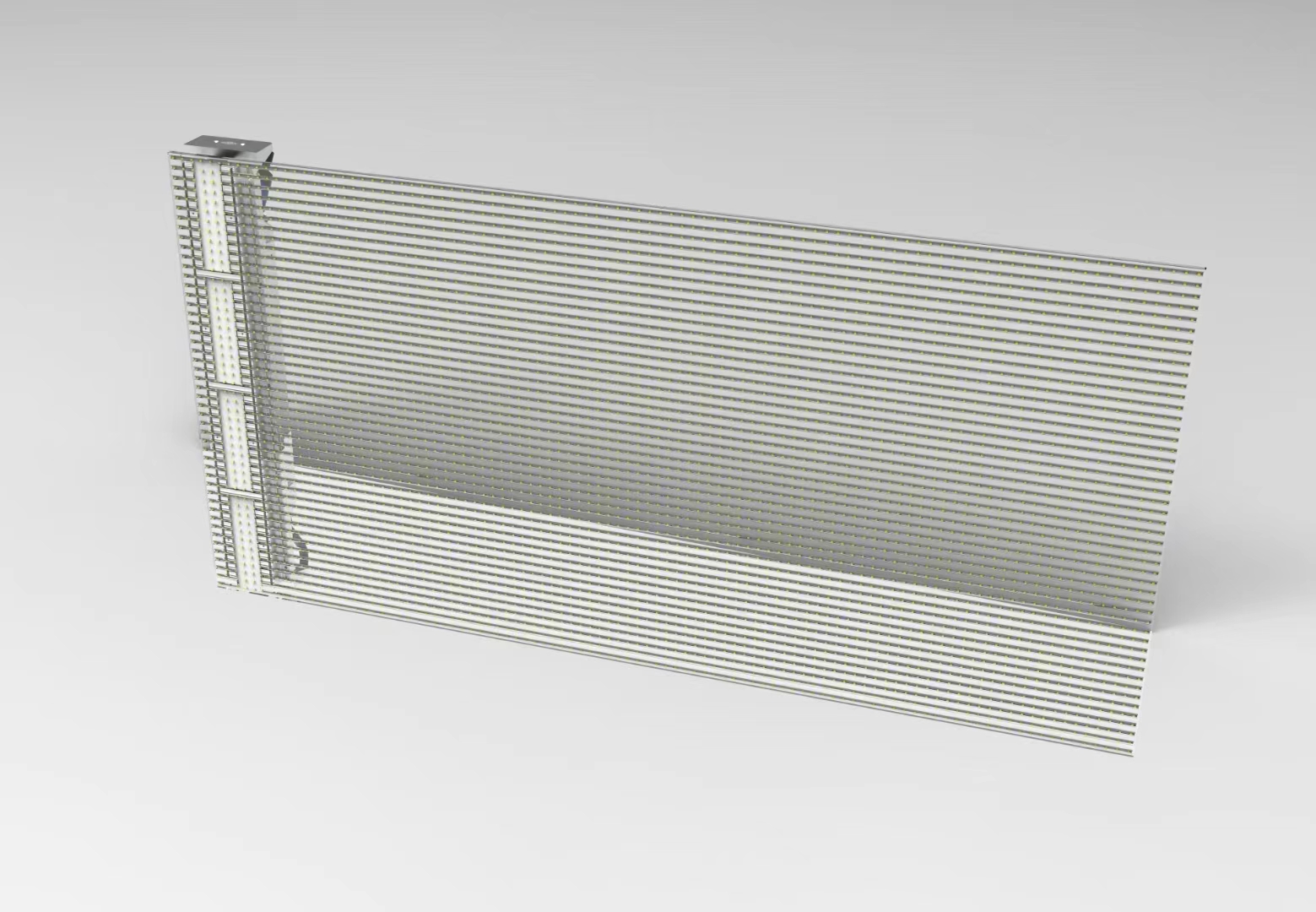

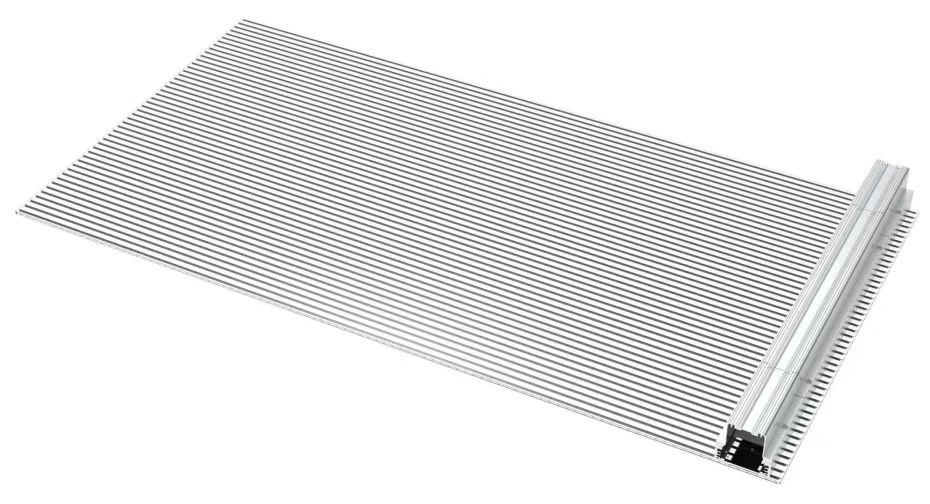

Product Details

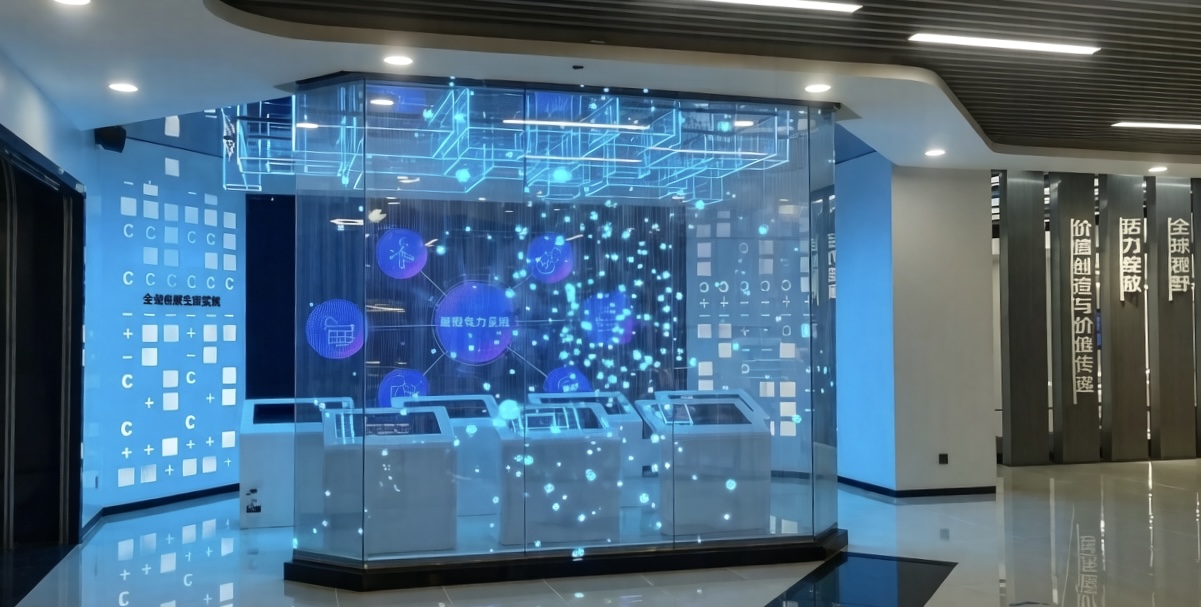

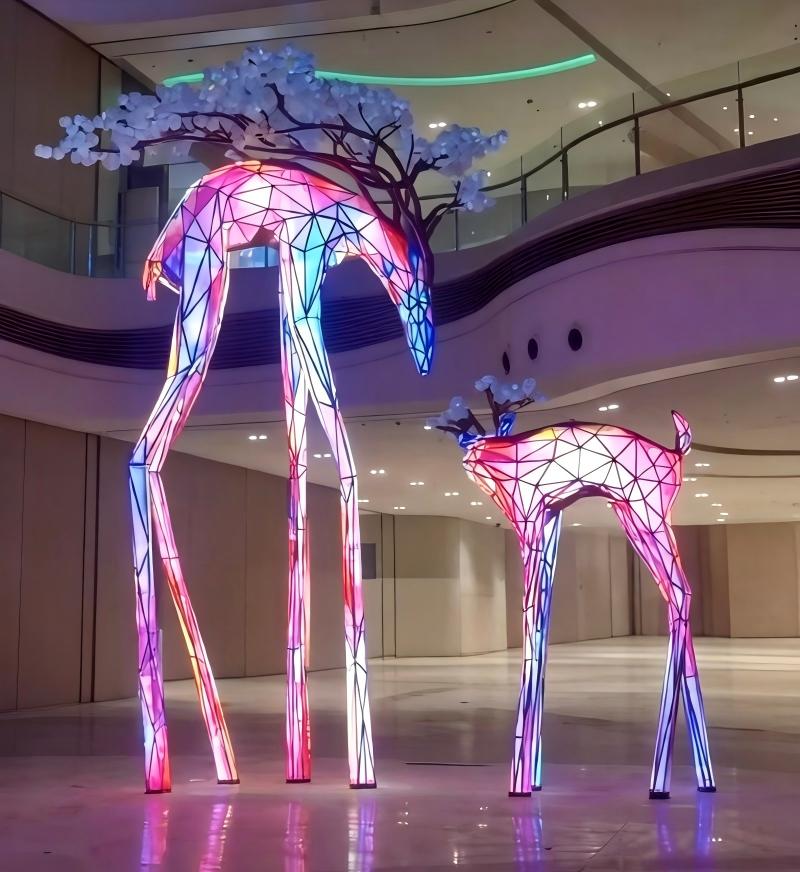

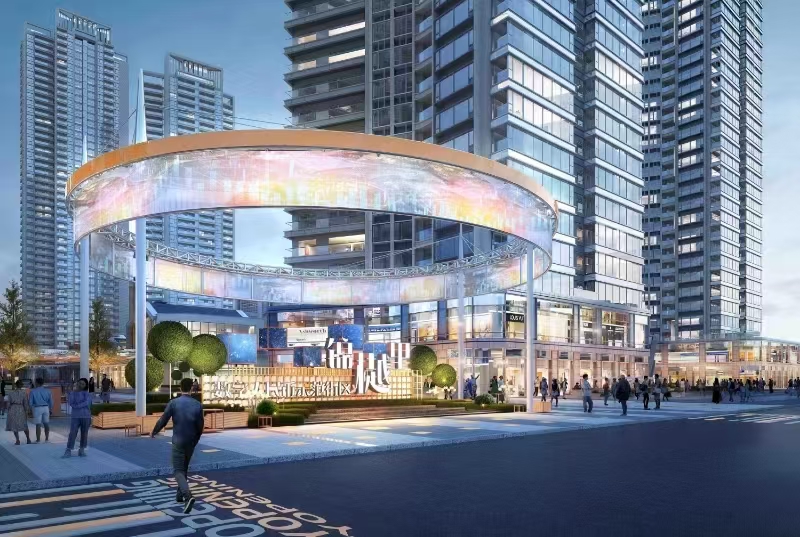

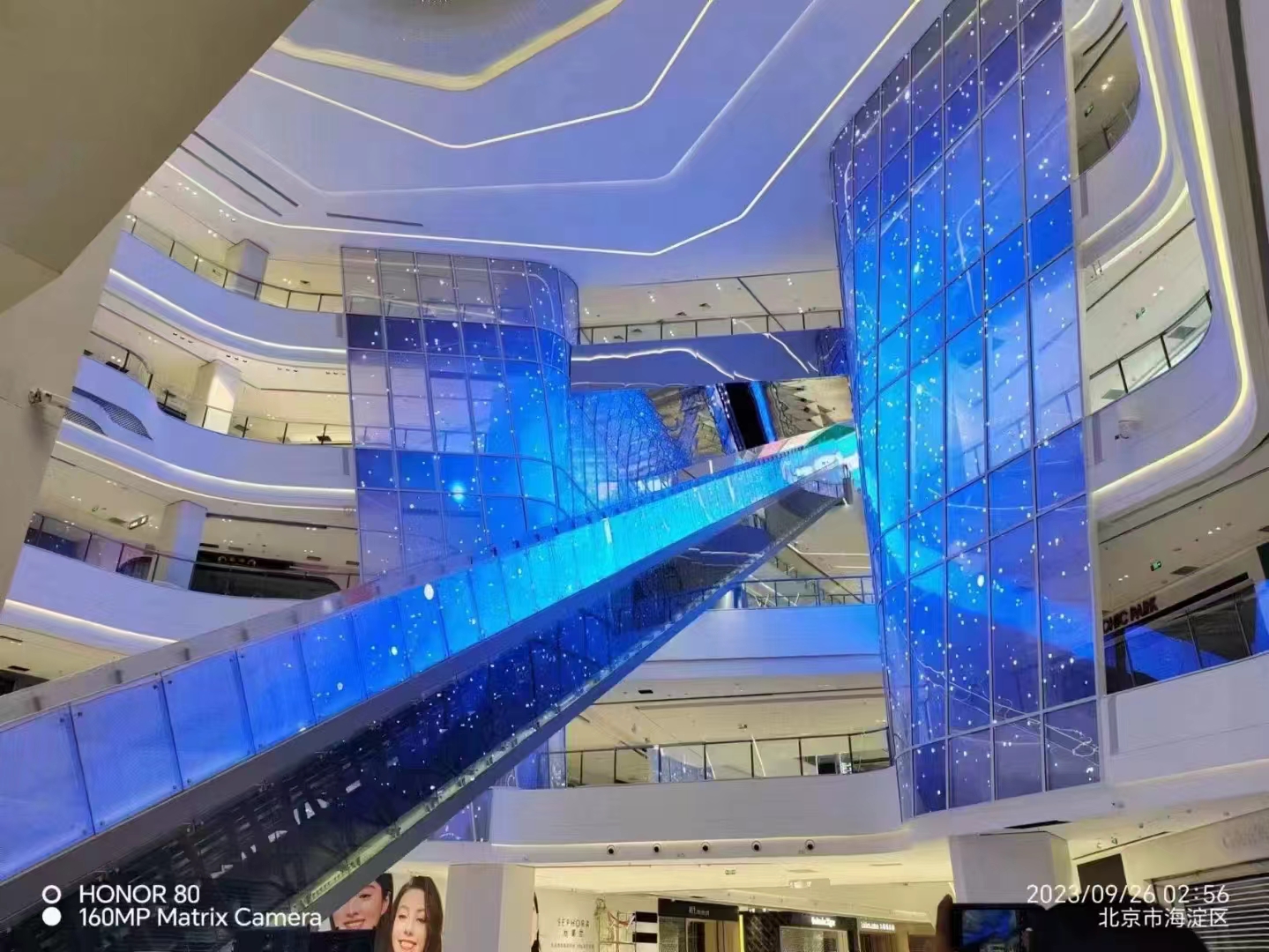

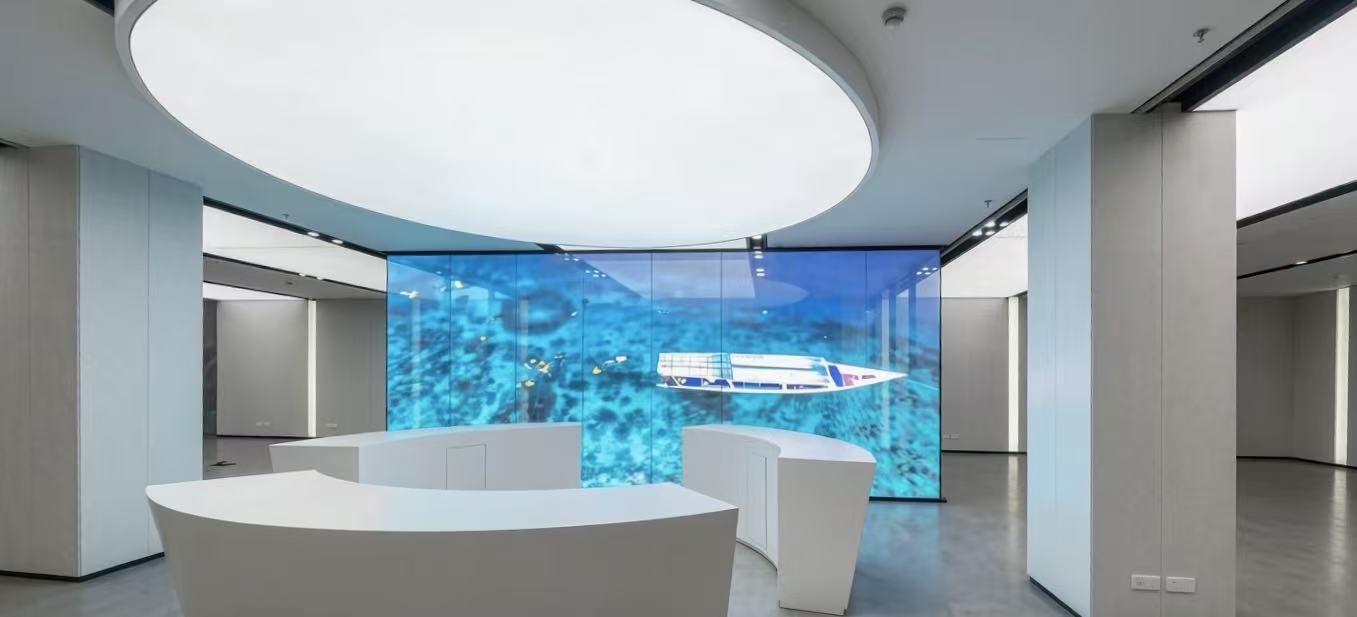

Applications
